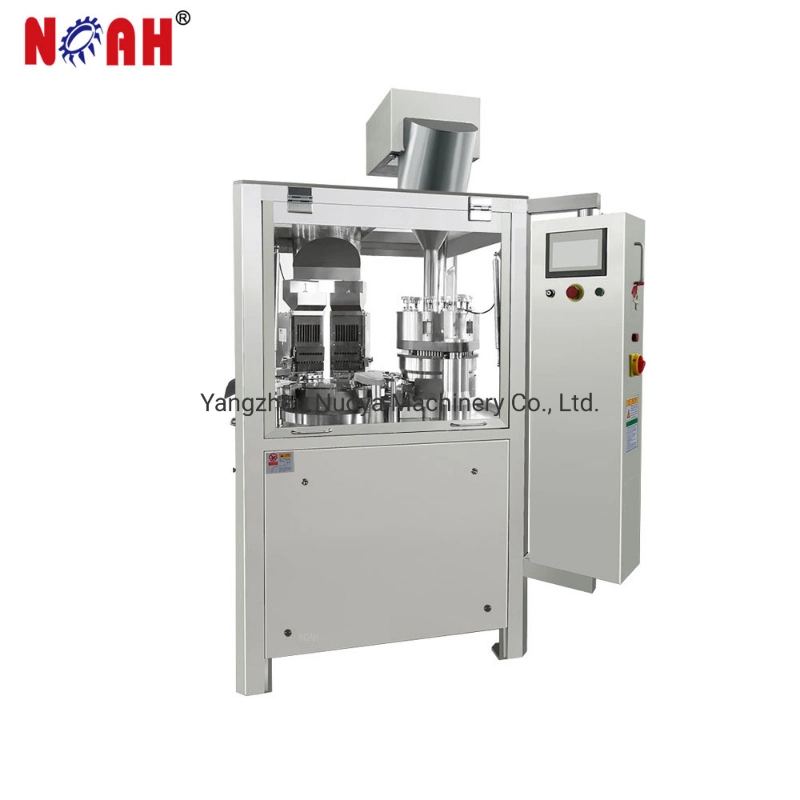

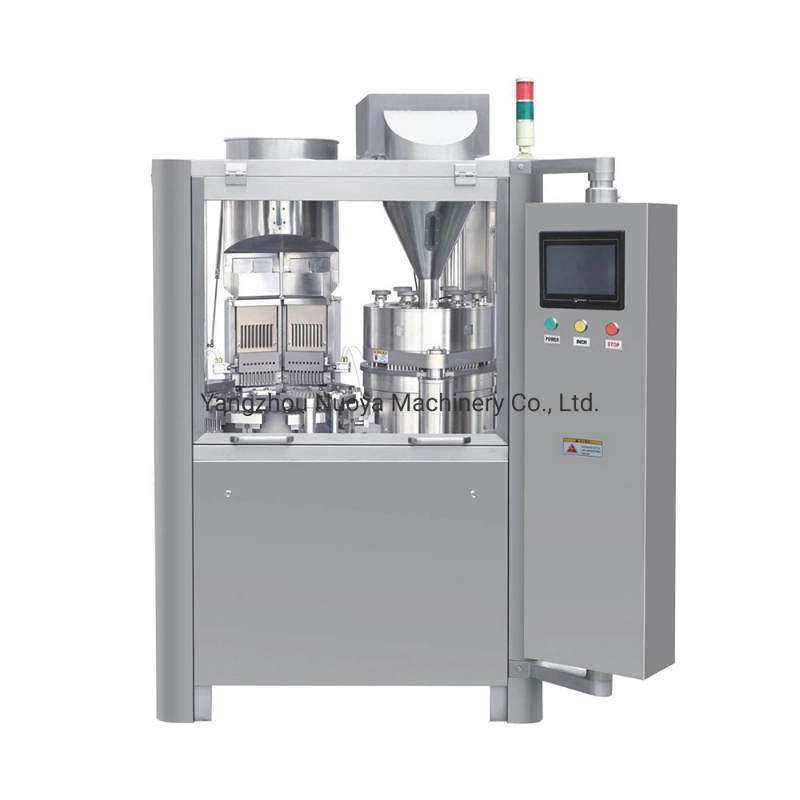

NJP2000-3800 Full-Automatic Medicine Capsule Filling Machine
Main Technical Data :| ITEM | NJP-2000 | NJP-2500 | NJP-3800 | |
| Max. Output | Pcs/h | 120000 | 150000 | 228000 |
| Capsule Size | Supro/safety capsule size :A-E (00#-5#) (need to exchange the spare parts/moulds accordingly) | |||
| Dosage Type | Powder/Pellet/Tablet | |||
| Power Supply | kw | 3.7 | 3.74+3 | 6.37+3 |
| Noise Size | dBA | Less than 75 | ||
| Machine Size | mm | 1200*1000*2000 | 1250*1150*2000 | 1450*1300*2100 |
| Net Weight | kg | 1250 | 1350 | 2300 |
Application:
Pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill), also can be used to fill vitamin, foodstuff and animal drug, etc.
Featurs And Functions:
1.Touching-Screen, PLC program control panel with LCD.
2.Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
3.Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.
4.Easy speed selection and closed capsule length adjustment.
5.Electrical Appliance control system approved to CE, and international standard.
6.Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.
7.Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.
8.Large cam mechanism keeps the rotating table of mould together with the whole equipment running with balance, and completely guarantees the machine operating with highest precision and accuracy.
 | 1. With high efficiency, accuracy, and energy saving. 2. Easier to clean, dismantle and re set-up the mould. 3.The working station cam runs under the good lubricating condition, extends the operating life of change parts. 4.Improved the inner design of Mould rotating table, Import 90 pcs beeline bearings for each machine from Japan directly, guaranteed the equipment precision and extended the life of machine. |
| 1. Easier to clean; keep the dosage in accuracy. 2. Enlarge the size of dosage pan (Enlarge 3cm); Increase the powder flowing uniformity in the dosage pan, according to the international standard. 3.Adopt three dimensional control elements; Take the undersurface plane of dosage as datum, so as to eliminate the natural transmutation of the dosage pan and copper saucer. It`s the special design at domestic (Patent No. 20042006795X). |  |
