Product Description
Hand Sanitizer Filling Machinery Description:
LW series filling machine adopts the principle of microcomputer control flow design and produce,is suitable for filling water to medium viscosity products,is the ideal equipment for Hand Sanitizer,general cosmetic, liquor, medicine, food, pesticides,oil factory,etc.
Hand Sanitizer Filling Machinery Features:
1. Vacuum Preventing Leaking System
2. No Bottle or Lack of Bottle, No Filling System
3. Photoelectric Sensor, Mechatronics Filling Adjustment System
4. Photoelectric Sensor, Material Level Control Feeding System
5. Stainless Steel Frame, Plexiglass as Security Cover
6. Control System: PLC/Electronic-Pneumatic Controlled
7. Operation Panel: "Intelligent" Colorful Touch Screen
8. Filling Accuracy:+-0.5%
9. Capacity Adjustment:All cylinders adjusted automatically combine single cylinder adjusted individually.
10. Container transport:Stainless steel frame and engineering plastic plate chain variable speed conveyor, with photoelectric sensor.
Hand Sanitizer Filling Machinery Technical Parameters:
Hand Sanitizer Filling Machinery Accessories list:

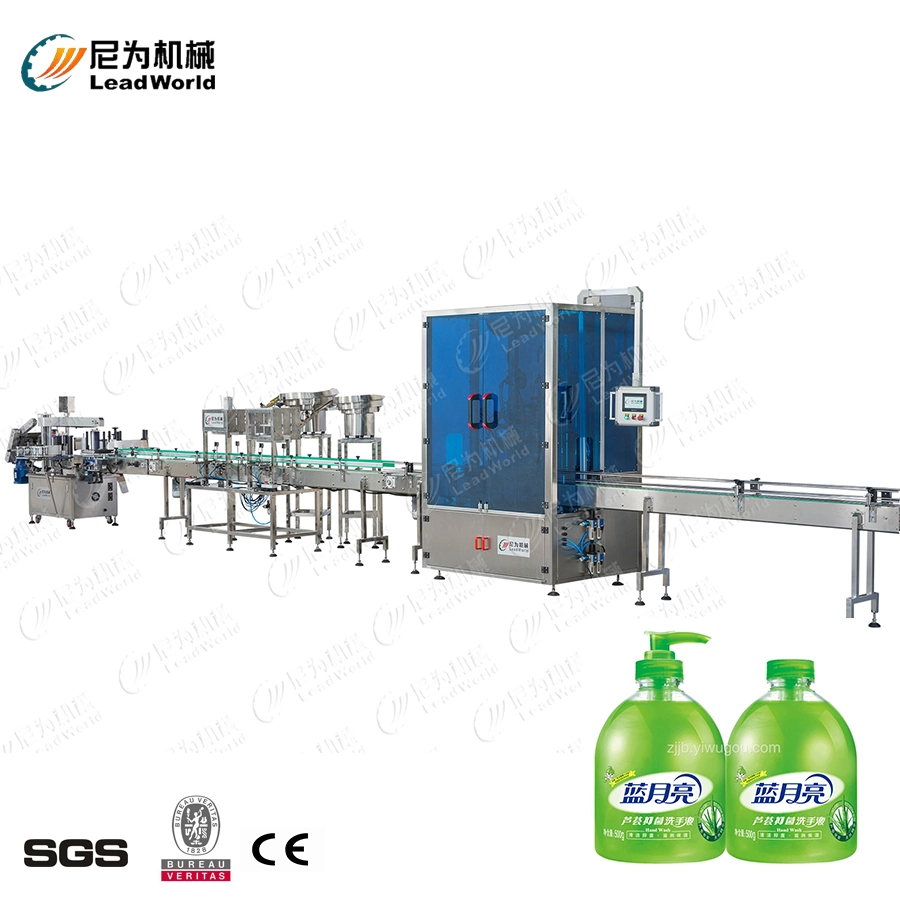

Hand Sanitizer Filling Machinery Machine picture:
FAQ
Q1:Are you manufacturer or trading company?
Q2:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient.
Q3:How can you guarantee quality?
1.We have completed working system and procedures and we follow them
very strictly.
2.Our different worker is responsible for different working process, their work
is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,
such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
A. Our company will test the goods before delivery
B. Buyer inspection
C. Third-party inspection agency
5.Our machines are certified by CE,SGS,ISO.
Q4:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technical
drawing, but also can design new machine according to your requirements.
Q5:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your
worker if needed.
Hand Sanitizer Filling Machinery Description:
LW series filling machine adopts the principle of microcomputer control flow design and produce,is suitable for filling water to medium viscosity products,is the ideal equipment for Hand Sanitizer,general cosmetic, liquor, medicine, food, pesticides,oil factory,etc.
Hand Sanitizer Filling Machinery Features:
1. Vacuum Preventing Leaking System
2. No Bottle or Lack of Bottle, No Filling System
3. Photoelectric Sensor, Mechatronics Filling Adjustment System
4. Photoelectric Sensor, Material Level Control Feeding System
5. Stainless Steel Frame, Plexiglass as Security Cover
6. Control System: PLC/Electronic-Pneumatic Controlled
7. Operation Panel: "Intelligent" Colorful Touch Screen
8. Filling Accuracy:+-0.5%
9. Capacity Adjustment:All cylinders adjusted automatically combine single cylinder adjusted individually.
10. Container transport:Stainless steel frame and engineering plastic plate chain variable speed conveyor, with photoelectric sensor.
Hand Sanitizer Filling Machinery Technical Parameters:
| Model | LW--4A | LW--6A | LW--8A | LW--10A | LW--12A |
| Filling Volume | 500ml can customize | 500ml can customize | 500ml can customize | 1000-2500ml can customize | 2500-5000ml can customize |
| Air Consumption | 120L/Min | 140L/Min | 160L/Min | 280L/Min | 300L/Min |
| Total Power | AC380V, 50/60HZ 1.4KW | AC380V, 50/60HZ 1.7KW | AC380V, 50/60HZ 2.1KW | AC380V, 50/60HZ 2.9KW | AC380V, 50/60HZ 3KW |
| Capacity | 0--1920 bottles/h 500ml bottle as an example | 1800-2520 bottles/h 500ml bottle as an example | 2400-3360 bottles/h 500ml bottle as an example | 3000-4200 bottles/h 500ml bottle as an example | 3600-5040 bottles/h 500ml bottle as an example |
| Filling Heads | 4 | 6 | 8 | 10 | 12 |
| Material | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 |
| Accessories name | Brand name |
| PLC | Siemens German |
| electrical elements | Schneider France |
| pneumatic element | AirTac Taiwan |
| amphenol connector | Weidmuller German |
| Transducer | Danfoss Denmark |
| Bearing | IGUS German |
| Photoelectricity | KEYENCE Japan it is waterproof |
| Piston | Taiwan, heat-resistant, oil proof |
FAQ
Q1:Are you manufacturer or trading company?
A.Manufacturer√ B. Trading company
We are manufacture verified by BV,SGS,CE and we have our own design team.Q2:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient.
Q3:How can you guarantee quality?
1.We have completed working system and procedures and we follow them
very strictly.
2.Our different worker is responsible for different working process, their work
is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,
such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
A. Our company will test the goods before delivery
B. Buyer inspection
C. Third-party inspection agency
5.Our machines are certified by CE,SGS,ISO.
Q4:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technical
drawing, but also can design new machine according to your requirements.
Q5:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your
worker if needed.
