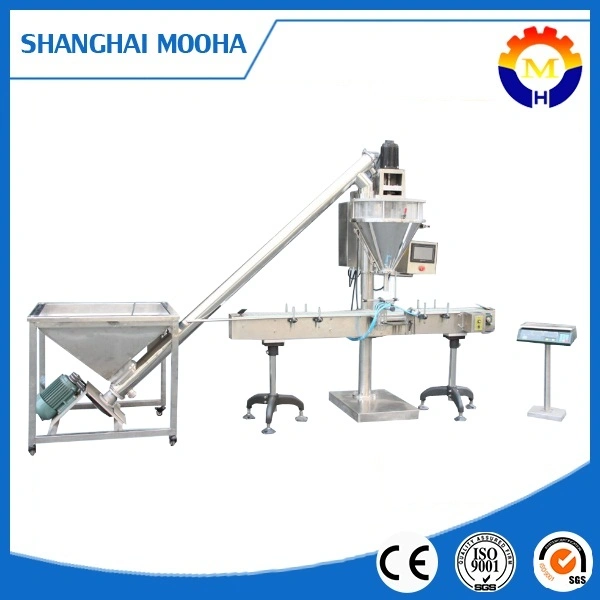

Semi automatic chili powder packing machine/Powder filling machine/Auger Filling powder machine
Parameter
Features
1.Made of stainless steel 304, meet GMP standard
2.Servo control auger, more stable and accuracy -Step motor can be economical customized
3.PLC+ Touch screen control, English version interface
4.Electric scale or load cell connect with touch screen for weight feedback, machine can be used by weight or by volume according the user need
5.Same material same screw ,once 1 spec parameter item preset , just change the target weight on work page then inner item like the fast filling weight , slow filling weight and mini weight value will be change automatically
6.Changing the auger attachment, it fits for lots of material ranging from fine-powder to granule.
7.Top Hopper equipped with level sensor to control the feeding machine work automatically
8.Foot Pedal control filling
9.50L Hopper can be half open and it more easy for screw change or inner wall cleaning
10.Stand pole of filler is in round shape. All parts like the electric cabinet ,touch screen box ,bag clamper or scale frame etc fixed on it easily by metal clamper .
11.Material entrance and dust exit on both side of auger filler .it can be changeable so feeder can be placed from different side according user workshop situation.
12.Insider mixing blade can be adjustable by bolts to match different size screw to assure the accuracy when packing
Application
This type can do dosing and filling work. Due to the special design, it suits most kinds of powder and small granular materials filling, like white sugar, spice powder, milk powder, wheat powder, starch powder, talcum powder, salt, solid drink, white sugar, dextrose, coffee powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on.
Contact information
Please feel free to contact us by : 0086-18001788503,website:sh-mooha.en.made-in-china.com

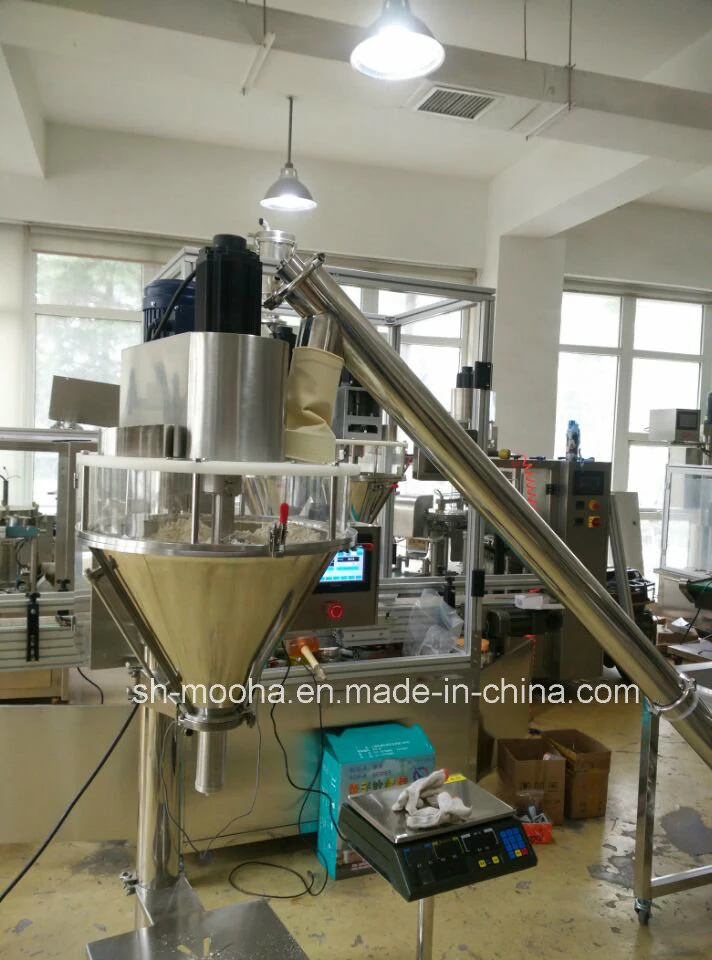

Detail of machine
Parameter
| Model | MQD-5F |
| Packing supply | 5-5000g(by changing different auger tooling using ) |
| Packing speed | 10-60bags/minutedepend on operator and material character) |
| Hopper capacity | 50L |
| accurancy | ≤±0.3-2% |
| Power | AC380V 50HZ.900W |
| Machine weight | 300kg |
| Machine size | LxWxH=1000x650x1900(mm) |
Features
1.Made of stainless steel 304, meet GMP standard
2.Servo control auger, more stable and accuracy -Step motor can be economical customized
3.PLC+ Touch screen control, English version interface
4.Electric scale or load cell connect with touch screen for weight feedback, machine can be used by weight or by volume according the user need
5.Same material same screw ,once 1 spec parameter item preset , just change the target weight on work page then inner item like the fast filling weight , slow filling weight and mini weight value will be change automatically
6.Changing the auger attachment, it fits for lots of material ranging from fine-powder to granule.
7.Top Hopper equipped with level sensor to control the feeding machine work automatically
8.Foot Pedal control filling
9.50L Hopper can be half open and it more easy for screw change or inner wall cleaning
10.Stand pole of filler is in round shape. All parts like the electric cabinet ,touch screen box ,bag clamper or scale frame etc fixed on it easily by metal clamper .
11.Material entrance and dust exit on both side of auger filler .it can be changeable so feeder can be placed from different side according user workshop situation.
12.Insider mixing blade can be adjustable by bolts to match different size screw to assure the accuracy when packing
Application
This type can do dosing and filling work. Due to the special design, it suits most kinds of powder and small granular materials filling, like white sugar, spice powder, milk powder, wheat powder, starch powder, talcum powder, salt, solid drink, white sugar, dextrose, coffee powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on.
Contact information
Please feel free to contact us by : 0086-18001788503,website:sh-mooha.en.made-in-china.com
Detail of machine
