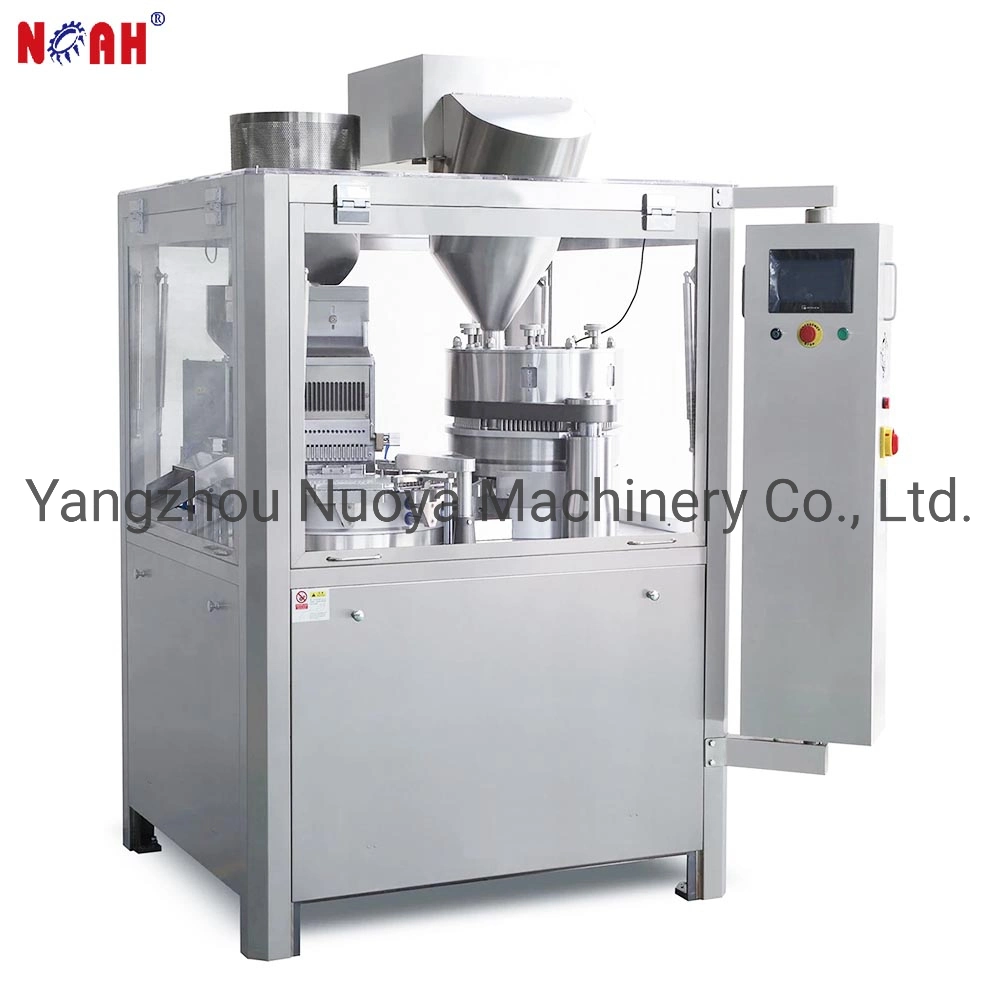

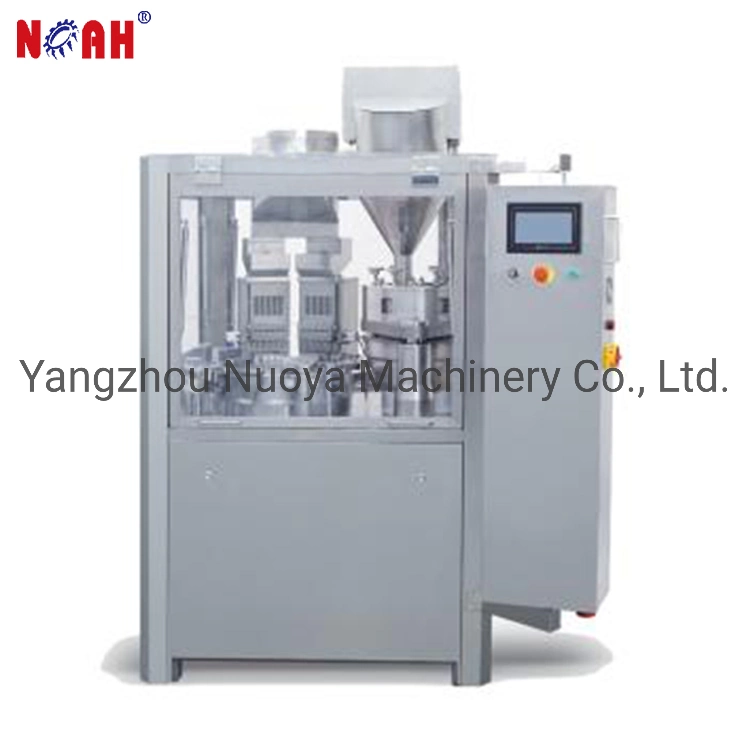

Pharmaceutical Machine (Capsule fiiling machine)
Pharmaceutical Machine (Capsule fiiling machine)
Model No.NJP-2000NJP-2500NJP-3800
Capacity2000 capsules/min2500 capsules/min3800 capsules/min
Suitable for Capsule00#, 0#, 1#, 2#, 3#, 4#,5#
Total Power 8Kw9.5KW11KW
Overall Weight1100Kg1400Kg2400Kg
Machine Dimension1100mm x 1300mm x 1800mm 1100mm x 1300mm x 1800mm1440× 1300 × 2080mm
Accuracy+ 1% Depending upon the consistency, uniformity & bulk density of powder under the controlled level of humidity.
This machine is widely used in Pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill),also can be used to fill vitamin, foodstuff and animal drug, etc.

1. Touching-Screen, PLC program control panel with LCD.
2. Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
3. Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.
4. Easy speed selection and closed capsule length adjustment.
5. Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.
6. Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.
7. Large cam mechanism keeps the rotating table of mould together with the whole equipment running with balance, and completely guarantees the machine operating with highest precision and accuracy.

Pharmaceutical Machine (Capsule fiiling machine)Pharmaceutical Machine (Capsule fiiling machine)Pharmaceutical Machine (Capsule fiiling machine)
