Njp800 Medicine Powder Hard Gelatin Small Automatic Capsule Filling Machine

NJP-800 Pharmaceutical Powder Hard Gelatin Small AutomaticCapsule Filling MachineInstruction and features:This model is an intermittent motion and hole plate type filling full automatic capsule filling equipment. It adopt optimization design for meeting the characteristics of Chinese medicine and the requirement of GMP, it has t

Featured Products

NJP-800 Pharmaceutical Powder Hard Gelatin Small Automatic
Capsule Filling Machine

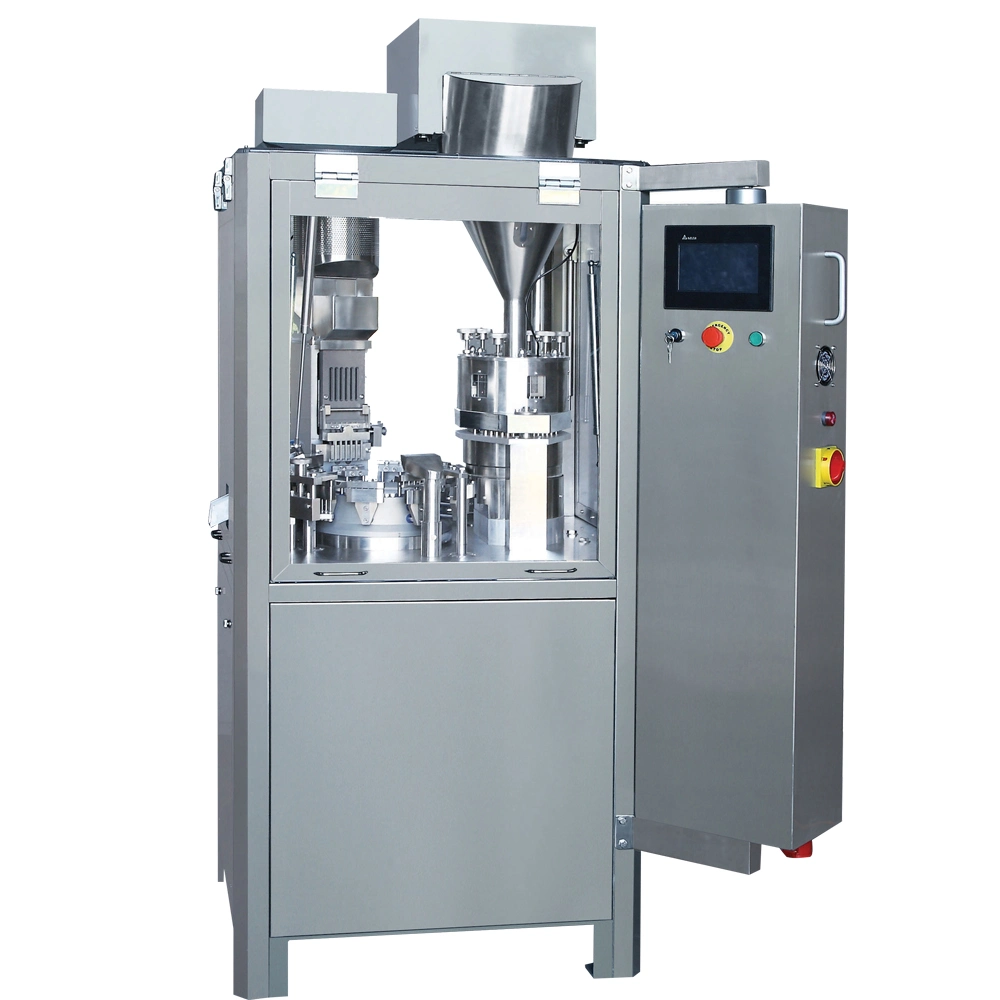

Njp800 Pharmaceutical Powder Hard Gelatin Small Automatic Capsule Filling Machine

Instruction and features:

This model is an intermittent motion and hole plate type filling full automatic capsule filling equipment. It adopt optimization design for meeting the characteristics of Chinese medicine and the requirement of GMP, it has the characteristics of compact mechanism, small volume, lower noise, precision filling dosage, multi-function, stable running etc. It can finish the following motion at same time: capsule feeding, capsule separating, powder filling, capsule rejecting, capsule locking, finished capsule discharge and die hole cleaning etc. It is the most ideal hard capsule filling equipment for pharmaceutical and health food industry.

Product Prameters:


ModelNJP-200       NJP-400       NJP-600
Max.output(capsules/min)200400600
Filling dosagePowder, Pellets, TabletPowder, Pellets, TabletPowder, Pellets, Tablet
Capsule sizeCapsule 00# -5#/Safety capsule A-ECapsule 00# -5#/Safety capsule A-ECapsule 00# -5#/Safety capsule A-E
Total power220V/380V 3.7Kw220V/380V 3.7Kw220V/380V 4.9Kw
Water supply500L/h,0.2-0.10Mpa500L/h,0.2-0.10Mpa500L/h,0.2-0.10Mpa
Dust collector160m3/h160m3/h160m3/h
Overall dimension (mm)720*680*1700720*680*1700930*790*1930
 Weight (kg)700700800

ModelNJP-800       NJP-1000       NJP-1200
Max.output(capsules/min)80010001200
Filling dosagePowder, Pellets, TabletPowder, Pellets, TabletPowder, Pellets, Tablet
Capsule sizeCapsule 00# -5#/Safety capsule A-ECapsule 00# -5#/Safety capsule A-ECapsule 00# -5#/Safety capsule A-E
Total power220V/380V 4.9Kw220V/380V 5.75Kw220V/380V 5.75Kw
Water supply500L/h,0.2-0.10Mpa500L/h,0.2-0.10Mpa500L/h,0.2-0.10Mpa
Dust collector160m3/h160m3/h160m3/h
Overall dimension (mm)930*790*19301020*860*19701020*860*1970
 Weight (kg)800900900

ModelNJP-1500       NJP-2000       NJP-2500
Max.output(capsules/min)150020002500
Filling dosagePowder, Pellets, TabletPowder, Pellets, TabletPowder, Pellets, Tablet
Capsule sizeCapsule 00# -5#/Safety capsule A-ECapsule 00# -5#/Safety capsule A-ECapsule 00# -5#/Safety capsule A-E
Total power220V/380V 6.45Kw220V/380V 6.45Kw220V/380V 6.45Kw
Water supply500L/h,0.2-0.10Mpa500L/h,0.2-0.10Mpa500L/h,0.2-0.10Mpa
Dust collector160m3/h160m3/h160m3/h
Overall dimension (mm)1020*1050*19701020*1050*19701150*1050*1970
 Weight (kg)90015001500

ModelNJP-3200       NJP-3800       NJP-7500
Max.output(capsules/min)320038007500
Filling dosagePowder, Pellets, TabletPowder, Pellets, TabletPowder, Pellets, Tablet
Capsule sizeCapsule 00# -5#/Safety capsule A-ECapsule 00# -5#/Safety capsule A-ECapsule 00# -5#/Safety capsule A-E
Total power220V/380V 9.55Kw220V/380V 9.55Kw220V/380V 13.5Kw
Water supply500L/h,0.2-0.10Mpa500L/h,0.2-0.10Mpa500L/h,0.2-0.10Mpa
Dust collector160m3/h160m3/h160m3/h
Overall dimension (mm)1150*1280*20601150*1280*20601700*1280*2150
 Weight (kg)240024003800
