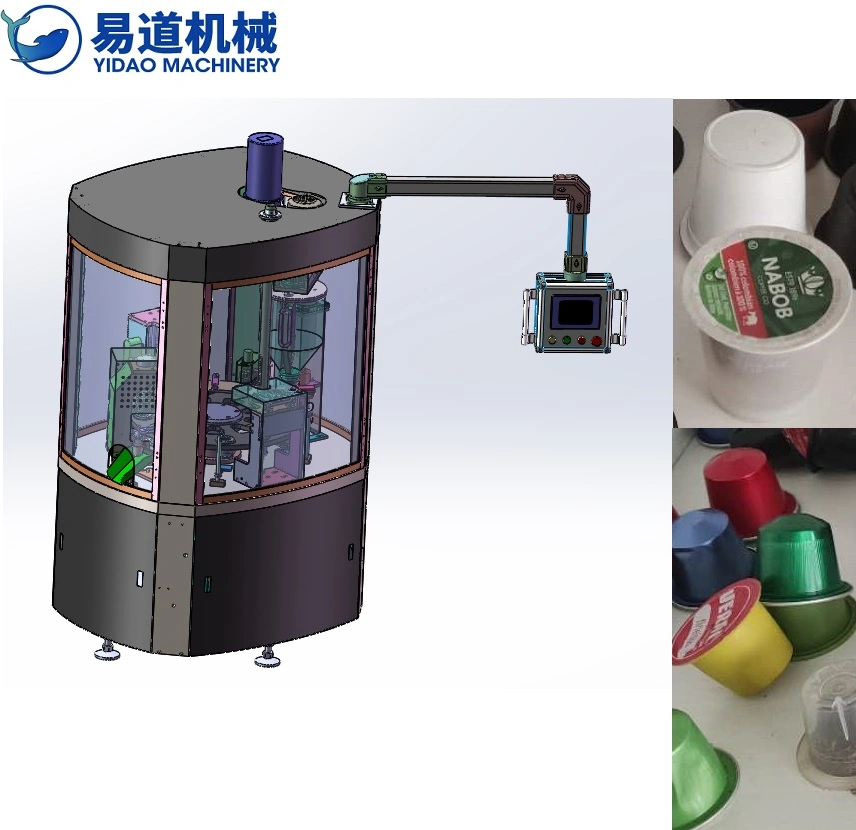

Machine Introduction

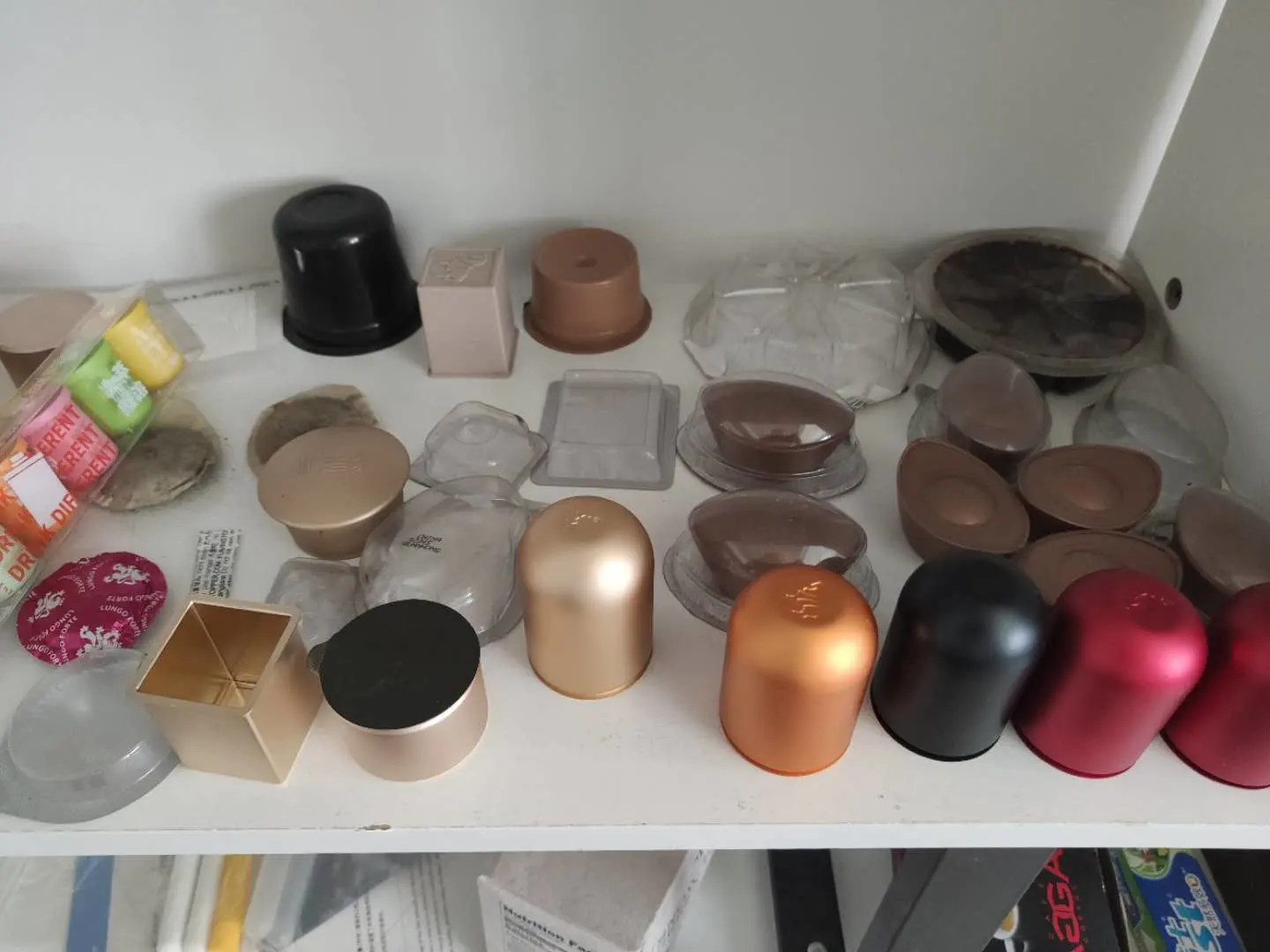

This machine is a new model newly developed by our company. It has a rotating machine, small footprint, fast speed, and stability. It can fill 3000-3600 capsules per hour at the fastest. It can fill a variety of cups, as long as Changing the machine mold can be completed within 30 minutes. Servo control spiral canning, canning accuracy can reach ±0.1g. With the function of diluting, the residual oxygen of the product can reach 5%, which can extend the shelf life of coffee. The whole machine system is mainly based on Schneider, developed by the Internet of Things technology, and can choose a computer/mobile phone to monitor or operate the machine online.
Scope of application
It is suitable for the weighing and canning of various granular, powder, liquid and other materials. Such as coffee powder, milk powder, soy milk powder, tea, instant powder, yogurt and other food materials.
Machine technical parameters
| Model: | HC-RN1C-60 |
| Food materials: | ground/coffee, tea, milk powder |
| Maximum speed: | 3600 grains/hour |
| Voltage: | single-phase 220V or can be customized according to customer voltage |
| Power: | 1.5KW |
| Frequency: | 50/60HZ |
| Air pressure supply: | ≥0.6Mpa / 0.1m3 0.8Mpa |
| Machine weight: | 800kg |
| Machine size: | 1300mm×1100mm×2100mm |
Electrical configuration
| PLC system: | Schneider |
| Touch screen: | Fanyi |
| Inverter: | Schneider |
| Servo motor: | Schneider |
| Circuit breaker: | Schneider |
| Button switch: | Schneider |
| Encoder: | Omron |
| Temperature control instrument: | Omron |
| Everbright sensor: | Panasonic |
| Small relay: | Izumi |
| Solenoid valve: | Airtac |
| Vacuum valve: | Airtac |
| Pneumatic components: | Airtac |
