Products Description

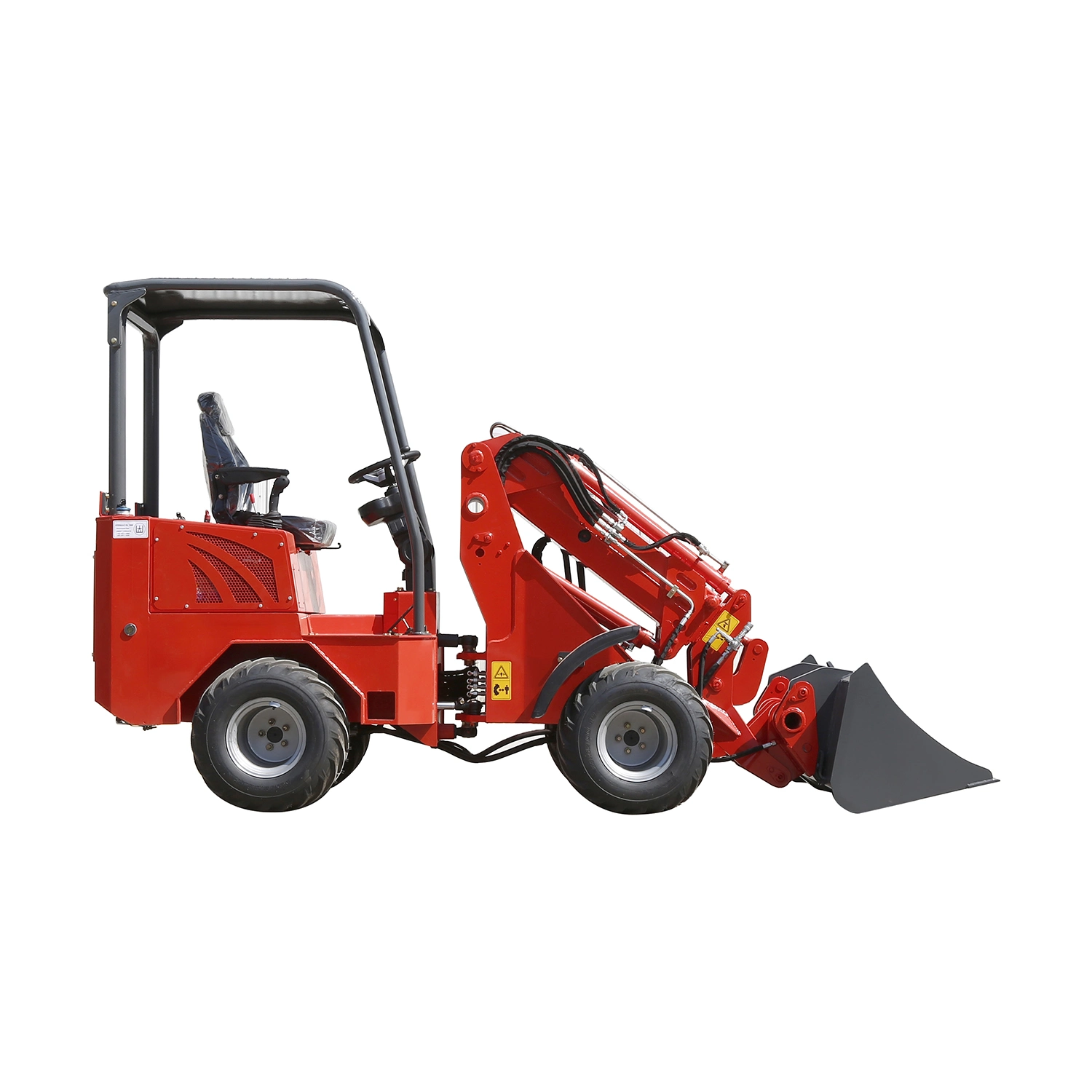

Telescopic compact front end wheel loader with CE ceetificate
T1000 Telescopic loader different from others:
1.50 degree turning angle
2.High manganese steel plate Q355 by laser cutting machine.
3.Arm and be lifting and telescopic in the same time due to the double hydraulic pump.
4.Automatic stay levelling.
5.Hydraulic hose standard.
Telescopic compact front end wheel loader with CE ceetificate
T1000 Telescopic loader different from others:
1.50 degree turning angle
2.High manganese steel plate Q355 by laser cutting machine.
3.Arm and be lifting and telescopic in the same time due to the double hydraulic pump.
4.Automatic stay levelling.
5.Hydraulic hose standard.
Standard Configurations For TL1000 Wheel Loader
1) Standard bucket
2) Euro III Yanmar 3TNV88-BSSY Engine
3) Backward camera, USB, Radio
4) Electronic joystick
5) Hydraulic pressure checking system
6) Quick Hitch
7) Italian Hydro Static Transmission
8) 27/10.5-15 tyres
9) Free service spare parts
10) E4 lamp /led working lamp
Optional Configurations For TL1000 Wheel Loader
1) Bobcat Quick hitch
2) closed cabin
3) KUBOTA EURO STAGE V engine(18.5kw/2300rpm)
4) air conditioner
5) attachments
6)tires
1) Standard bucket
2) Euro III Yanmar 3TNV88-BSSY Engine
3) Backward camera, USB, Radio
4) Electronic joystick
5) Hydraulic pressure checking system
6) Quick Hitch
7) Italian Hydro Static Transmission
8) 27/10.5-15 tyres
9) Free service spare parts
10) E4 lamp /led working lamp
Optional Configurations For TL1000 Wheel Loader
1) Bobcat Quick hitch
2) closed cabin
3) KUBOTA EURO STAGE V engine(18.5kw/2300rpm)
4) air conditioner
5) attachments
6)tires
| 1.0 Engine Details | |
| (1) Model: | YANMAR TNV88-BSSY Engine |
| KUBOTA 1505-E4B | |
| (2) Rated Power: | 19.6KW/18.5KW |
| (3) Rated Speed: | 2200r/min(rpm) |
| (4)Fuel Consumption Ration in Standard Working Condition: | 252g/kw.h |
| 2.0 Operating Specifications | |
| (1) Bucket Capacity: | 0.35m3 |
| (2) Loading Capacity | 800 KG |
| (3) Operation Weight: | 1770KG |
| (4) Lifting Time: | ≤8.0s |
| (5) Driving Speed: | 0-6.9km/h |
| (6)Turning Radius: | minimum 875mm /maximum 2150mm |
| (7) Max.Turning Angle: | ±50° |
| 3.0 Overall Dimensions | |
| (1) Overall length(bucket on ground) | 3849mm |
| (2) Overall Height: | 2296mm |
| (3) Overall width: | 1250mm |
| (4) Dumping Height: | 3080mm |
| (5) Dumping Reach: | 480mm |
| (6) Min.Ground Clearance: | 278mm |
| (7) Wheel Base: | 1400mm |
| 4.0 Brake System | |
| (1) Service Brake: | Four wheel hydraulic spread-shoed brake |
| 5.0 Tyre | 27/10.5-15 |
| Warrantyperiod:1year; package:2unit/20GP; 4units/40HC | |
